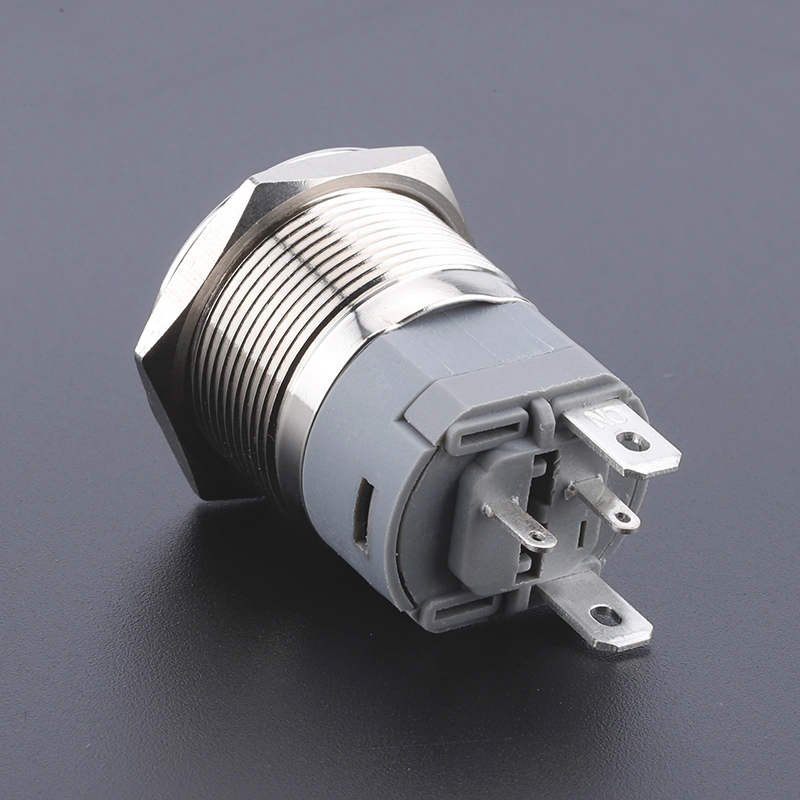

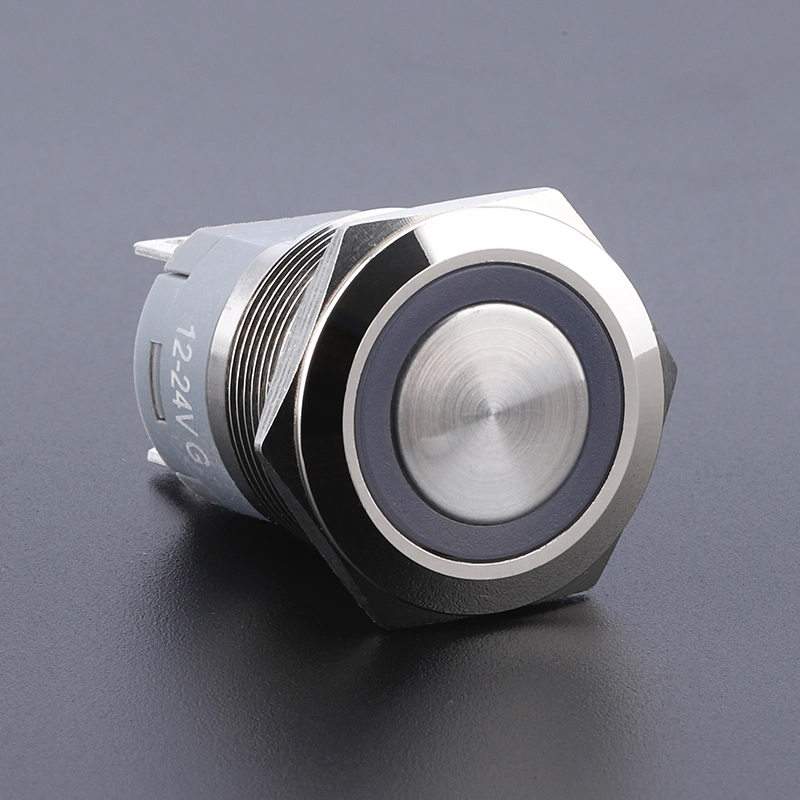

22mm 15A Power Button Ring LED Illuminated Red Blue 12V 24V 110V Membrane Switch

22mm 15A power push button ring led illuminated red blue 12v 24v 110v memebrane switchMaterial: Durable Stainless Steel button and body, Plastic, Electric Parts.Switch rating: 15A/250V AC. Easy to install: Screw clamp-type terminals, don\'t need to solder.A push-button is a momentary or non-latching switch that causes a temporar

Featured Products

22mm 15A Power Push Button Ring LED Illuminated Red Blue 12V 24V 110V Memebrane Switch22mm 15A power push button ring led illuminated red blue 12v 24v 110v memebrane switch
Material: Durable Stainless Steel button and body, Plastic, Electric Parts.
Switch rating: 15A/250V AC. Easy to install: Screw clamp-type terminals, don't need to solder.
A push-button is a momentary or non-latching switch that causes a temporary change in the state of an electrical circuit only while the switch is physically actuated. An automatic mechanism (such as a spring) returns the switch to its default position immediately afterward, restoring the initial circuit condition.
Operating temperature: -20~+55 ºC. Contact resistance: less than 50 MΩ. Insulation resistance: over 1000 MΩ.
Commonly used as vehicle horns, ignition switch, doorbells, home appliances button, and car, engineering equipment project.

Momentary: The button moves downward only when the button hand is pressed, button back if take hands-off.
Mounting hole:22mm
Dielectric Strength: 2000VAC/min
Mechanical Life: over 1000,000 times
Contact: Silver Alloy
Dielectric Strength: 2000V AC/min
Environment Temperature: -20 ºC ~ + 50 ºC
Easy to install, it has non-solder connections,screw-type terminals to make fitting very easy.
These big button face reset switches are perfect for the doorbell, coffee machine, horn button switch, PC power switch, or any circuit controls. Also great for electronic DIY projects.
Product NameIndicator light
ModelIB22K2-P10F-E
Mounting Hole22mm
Operation TypeMomentary
Switch Combination1NO
Actuator Shape Flat round Head
Terminal typeSolder terminal
Illuminated or notYes
Led Voltage3V-220V
Led ColorBlue
Illuminated Type Ring led
Enclosure MaterialBrass nickel/Stainless steel
Delivery Days1-7 days
 Contact Resistance50 mΩ max
Insulation Resistance1000MΩ Min
Dielectric Intensity2000VAC
Operating Temperature-20°C ~+55°C
Customized symbol, colored housing or Connector Acceptable and with fast shipping
AccessoriesNut, Rubber Waterproof O-ring
Customized Order Confirm1. What Led Color?    2. What Led Voltage?
What You Get1X push button switch:
22mm,15A

22mm 15A Power Push Button Ring LED Illuminated Red Blue 12V 24V 110V Memebrane Switch

22mm 15A Power Push Button Ring LED Illuminated Red Blue 12V 24V 110V Memebrane Switch
22mm 15A Power Push Button Ring LED Illuminated Red Blue 12V 24V 110V Memebrane Switch


22mm 15A Power Push Button Ring LED Illuminated Red Blue 12V 24V 110V Memebrane Switch
22mm 15A Power Push Button Ring LED Illuminated Red Blue 12V 24V 110V Memebrane Switch



22mm 15A Power Push Button Ring LED Illuminated Red Blue 12V 24V 110V Memebrane Switch

22mm 15A Power Push Button Ring LED Illuminated Red Blue 12V 24V 110V Memebrane Switch

Q1. What are your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have a 100% test before delivery

Q8: How do you make our business long-term and a good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Q9: What is the Momentary function?
A: When you push the switch and then move your finger, the actuator will back to the original position.
Q10: What is the Latching function?
A: When you press the button, it will be ON and keeps locked until you press again, it will return to the original position.
