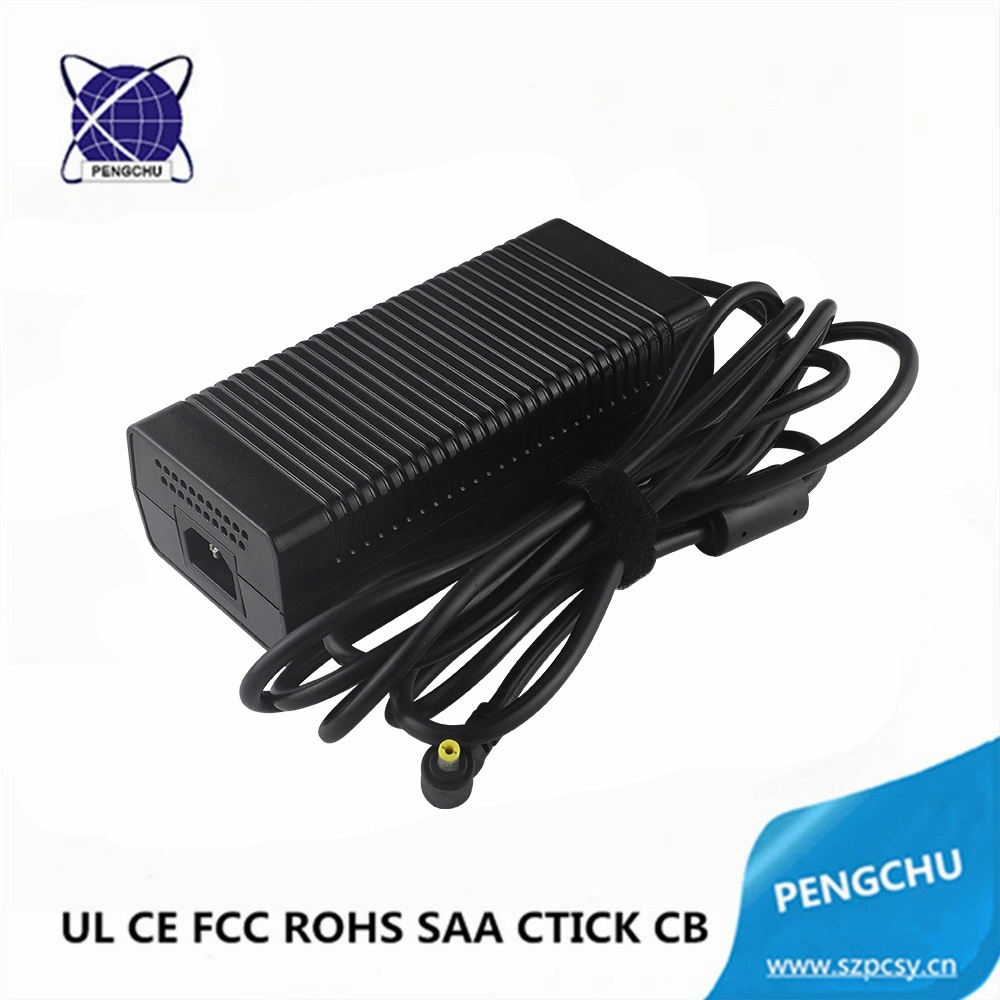

19.5V Switching Power Supply 6.7A 19.5 Volt Laptop AC Adapter Laptop Charger
Features:
(1)High efficiency, High reliability, Long life time
(2)Efficiency: 85% min
(3)Approved CE RoHS FCC CB PSE certification
(4)Warranty: 2 years
(5)Protection: Over current protection, Over voltage protection, Short circuit protection; Over temperature protection.
(6) Real power, high reliablity, long life
IEC320-C14, IEC320-C6 AC inlet optional
OEM/ODM welcome (special voltage & dc connector & logo & package).
(7)Suit for: Laptop adapter, LED, LCD, CCTV camera, Motor, Computer, etc.
Part. No. | PC-195067 |
Product size | 165*63*37mm |
AC Input | 100~240V AC 50/60Hz Max:90~264V AC 47/63Hz |
DC Voltage | 19.5V |
Rate Current | 6.7A |
Rate Power | 130W |
Material | 100% PC |
Certification | Approved CE RoHS FCC CB PSE certification |
Voltage Tolerance | ±5% |
Line Regulation | ±1% |
Load Regulation | ±5% |
Efficiency | >85% |
Short Circuit Protection | Shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed. |
Over Current Protection | 130%~150% |
Over Voltage Protection | 115%~135% |
Operating Temperature | -10ºC~50ºC(±10ºC) |
Relative Humidity | 20%~90% RH |
Storage Temperature | -40ºC~80ºC(±10ºC) |
DC Connector | 4PIN, 5.5*2.1mm or 5.5*2.5mm(Customized available) |
DC Cable | 0.9M,1.2M, 1.5M(Customized available) |
AC Cable | USA/UK/EU/AU/India Plugs(Customized available) |
