Product Description
Yingjiao 1000W Smps Mini Smps 12V Dc Ac 230V Power Supply



Model:YSI-120
Power:120W max.
Input:110/230VAC 50/60Hz
Output Voltage:5-48V
Output Current:0.01-20A
Input current:2.0A max.
Inrush Current:Cold start 45A. at 240VAC/50Hz,full load
Leakage Current:2mA max. at 240VAC input
Protections:Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP):Protection to Zero Voltage
Over Voltage Protection (OVP):≤Vout*150%
Over Current Protection (OCP):110%-180%
Working TEMP.:-20°C-60°C
Working Humidity:20%-90% RH non-condensing
Storage TEMP.,Humidity and altitude:-40 ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Certificates and approvals:CE,EMC,FCC,CCC,RoHS,REACH
EMI EMISSION:Radiation Test&Conduction Test: EN 55022/FCC Part 15
Harmonic Test : EN 61000-3-2
Flicker Test : EN 61000-3-3
SAFETY STANDARDS:EN 60950-1:2006+A11:2009+A1:2010+A12:2011
MTBF:100000 hours minimum at full load at 25 ambient
Life:3-5 years alternative
Dimension:160*98*42mm (L*W*H)
Weight:410g
Packing:34.5*29.5*22.5CM/20PCS



Details:



Model:YSI-0502000YSI-1201000YSI-1500800YSI-2400600YSI-3600330YSI-480250
DC Voltage:5V12V15V20V36V48V
Rated Current:20A10A8.0A6.0A3.3A2.5A
Current Range:0-20A0-10A0-8.0A0-6.0A0-3.3A1-2.5A
Rated Power:100W120W120W120W120W120W
Ripple & Noise(max.):100mVp-p120mVp-p150mVp-p240mVp-p360mVp-p480mVp-p
Voltage Tolerance:±5%±5%±5%±5%±5%±5%
Line Regulation:±3%±3%±3%±3%±3%±3%
Load Regulation:±5%±5%±5%±5%±5%±5%
Setup,Rise,Hold up time:3 second max./40 MS max./5 MS max. at 100VAC input and output max. load.

Yingjiao 1000W SMPS Mini SMPS 12V DC AC 230V Power Supply



Related Products
Yingjiao 1000W SMPS Mini SMPS 12V DC AC 230V Power Supply

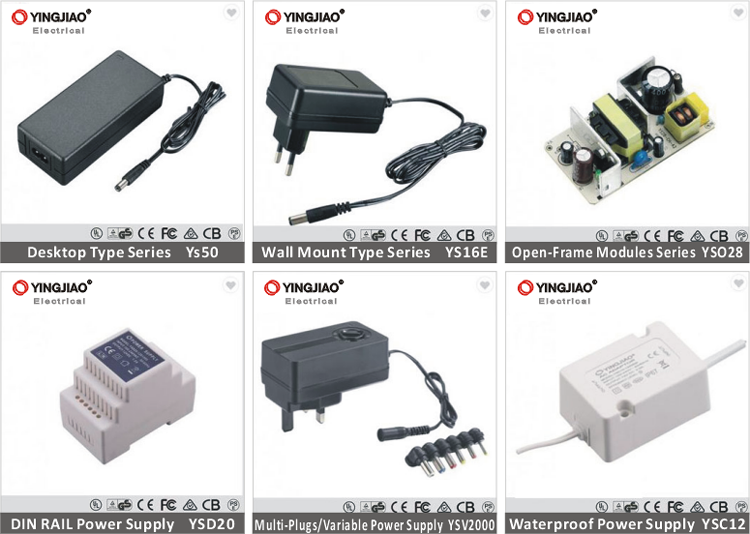

Products Catalog
Yingjiao 1000W SMPS Mini SMPS 12V DC AC 230V Power Supply



Why Choose Us

Yingjiao 1000W SMPS Mini SMPS 12V DC AC 230V Power Supply

Yingjiao Electrical Co., Ltd.established in 1995, is a leading manufacturer and exporter of Switching and Linear Power Adapters, Transformers, Chargers, Car Chargers and Power Cords. We can also design and manufacture power supply products with specifications according to the various demands of different customers.
Located in Ningbo, a coastal city in East China, we possess convenient location and transportation facility. We built up an area of 15,000 square meters working building, have about 600 skillful employees, and have 12 pieces for high frequency transformers, and an independent power cord workshop. We also imported some advanced equipments for production, including 2 sets the most advanced Panasonic high speed SMT, 2 sets lead-free wave soldering machine and 16 sets big plastic injection machine etc.
Being exported to over 30 countries and regions, such as Europe, America, Japan, Australia, Africa, Middle-East, South America, our products have won good comments from our customers.
We have a strict quality control and guarantee system and have been ISO9001:2000 certified. All our main products have obtained CE approvals of the European Union and CQC and CCC approvals of Chinese Quality Certification Center. Besides, we also carry out the international authoritative certifications, such as UL, CUL, TUV, CSA, and GS, etc.
We commit to supply high quality products and competitive prices to our customers with professional technologies and top-ranking services.

ODM/OEM partners are welcomed too.
