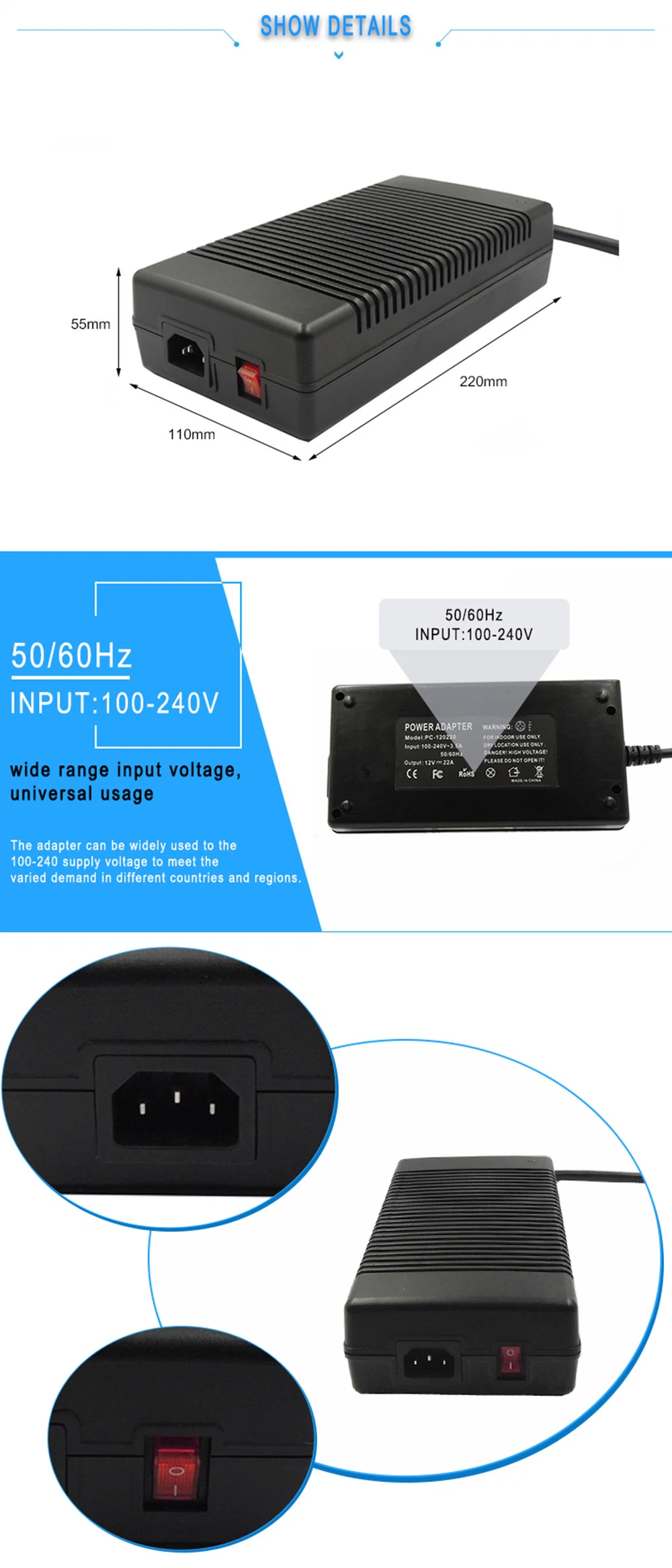

360W 12V 30A AC DC Plastic Material SMPS with Switch
Our certifications:
Company information:
Shenzhen Pengchu Industry Co., Ltd. was approved to establish by Shenzhen Administration for Industry and Commerce in 2004 and has passed ISO9001 : 2000 international quality system certification.
We specialize in developing , producing and exporting switching power supply and power adapters for laptops , as well as other related accessories . As a measure to enhance the quality of our products, we have introduced the most up-to-date testing equipment from overseas markets to ensure that each product undergoes strict quality control from design to packing.
All the products are 100% aging test. With CE, FCC, RoHS, CB, ETL, SAA, C-TICK, PSE ceritifcates. OEM and ODM orders are always welcome.
"Customer foremost" is our unchangeable service tenet. Several years' hard work brings us trust and confidence from our customers. Our sales network spreads to every corner of the world. We would like to work hand in hand with our business partners to create a more wonderful future.
Shenzhen Pengchu Industry Co., Ltd is always here to help you !
| Item No. | PC-120300 |
| AC Input | 100-240V 50/60Hz Max: 90-264V 47/63Hz |
| DC Voltage | 12V |
| DC Current | 30A |
| Rate Power | 360W |
| Voltage Tolerance | ±1% |
| Line Regulation | ±1% |
| Load Regulation | ±5% |
| Efficiency | ≥88% |
| PFC | ≥0.99 |
| Switch on/off | Yes |
| Short Circuit Protection | Shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed. |
| Over Current Protection | 130%~150% |
| Over voltage Protection | 115%~135% |
| Operating Temperature | -10ºC~50ºC (±10ºC) |
| Relative Humidity | 20%~90% RH |
| Storage Temperature | -40ºC ~ 80ºC (±10ºC) |
| High -voltage insulation test | Input to output: 3KV AC Output to input: 3KV AC |
| Insulation resistance | 100M ohms |
| DC connector | 4pin, 6pin, bare wire or your demand |
| DC cable | 0.5m, 0.6m, 0.8m or your demand |
