Factory Price 1.2KW 28V Switching Power Supply
Feature:
85-265Vac AC input or 220-380Vdc DC input, with +27V single output. It has input over-voltage protection, under-voltage protection, output over-current protection, short-circuit protection, over-temperature protection,power failure and fault alarm circuits.
Specification:
| 1. Input | |||||
| No. | Item | Specification | Unit | Remark | |
| 1.1 | Input working voltage range | 85-265(Typical value: 110/220) | Vac Vdc | The power supply can work normally at -40 to +75°C ambient temperature. | |
| 1.2 | Input working voltage range | 100-240(typical value: 110/220) | |||
| 1.3 | Input start-up voltage range | 90-265(Typical value: 110/220) | Vac | It can start normally at -40- +75°C, and is better to us shorter and thicker input wire. It is recommended to use 1 10AWG wire or 2 14AWG wires in parallel. After starting, ensure that the voltage of the input socket terminal is ≥90Vac. | |
| 1.4 | DC input start-up voltage range | 220-380 | Vac | No certification is required. Only test whether it can start up and work normally. | |
| 1.5 | Input impulse current | ≤30 | A | 265Vac input. It is recommended to use ≥32A for the circuit breaker at the front input end of the power supply. | |
| 1.6 | Maximum input current | ≤20 | A | 85Vac input, rated load output | |
| 1.7 | AC input frequency | 45-65(Typical value: 50/60) | Hz | Normally working during this full range | |
| 1.8 | Input power factor | ≥0.95 | Rated input/output | ||
| 2,Output | |||||
| 2.1 | Output voltage range | 26.5-27.5(rated voltage: 27V) | Vdc | ||
| 2.2 | Output current range | 1-45 | A | Full load or rated load: 45A | |
| 2.3 | Rated output power | 1237.5 | W | ||
| 2.4 | Stabilization accuracy | ≤±2 | % | For reference only. The result is subject to the output voltage range. The output voltage range is 27.0±0.5V. | |
| 2.5 | Source effect | ≤±1 | |||
| 2.6 | Load effect | ≥91 | % | ||
| 2.7 | Noise + ripple | ≤50 ≤100(low temperature -40ºC ) | mVp-p | Test after working 5 minutes in full load 45A, output terminal connected with 104+10uF capacitor and 20MHz bandwidth in temperature of -40ºC. | |
| 2.8 | Efficiency | ≥90 | % | 110Vac/full load/normal temperature | |
| ≥92 | % | 220Vac/full load/normal temperature | |||
| Tipical value 88 | % | Full temperature range/90-265V full load, and efficiency at high temperature is for reference only | |||
| 2.9 | Power-on output delay | ≤5 | S | 110V/220V AC input, 27V rated load output | |
| 2.10 | Temperature Coefficient | ≤±0.02 | %/°C | ||
| 2.11 | Output rise time | ≤200 | ms | The output voltage rises from 10% to 90% in rated load | |
| 2.12 | Output dynamic response | Overshoot amplitude≤±5%*Vo Custom: Recovery time≤500us | 25%-50%-25% and 50%-75%-50% (change rate: 0.25A/us; one cycle: 4ms) | ||
| 3. Protection | |||||
| 3.1 | Input overvoltage protection | 300-315 | Vac | Test in AC SOURCE and output with 50% load | |
| 3.2 | Input overvoltage recovery point | 285-300 | Vac | ||
| 3.3 | Input undervoltage protection | 65-80 | Vac | Test in AC SOURCE and output with 50% load | |
| 3.4 | Input undervoltage recovery point | 70-85 | Vac | ||
| 3.5 | Output overvoltage protection (for 27V ) | 105%-140%, that is 29-38.5V | Vdc | ||
| 3.6 | Current limit protection (for 27V voltage circuit) | 10%-140%*Io, that is 49.5-63A | A | Self-recoverable. Input voltage above 110Vac refers to the average current. | |
| 3.7 | Short circuit protection (for 27V voltage) | ≤170%*Io, that is ≤76.5A | A | Self-recoverable | |
| 3.8 | Over temperature protection | 85-105(typical value: 100). Recoverable when temperature lower than 95°C | °C | Ventilation system is placed in the cooling bottom plate of the power supply | |
Packaging, Transportation, and Storage
1. Packaging
The packaging box is labeled with information about product name, model, manufacturer's logo, quality certificattion, manufacturing date, etc.. A list of accessories is attached in the packaging box.
2. Transportation
It is suitable for transportation by car, ship, and airplane. During transportation, it should be covered, sun proof, and carefully moved.
3. Storage
When the product is not in use, it should be stored in the packaging box. The warehouse environment temperature is -10 to 40°C and the relative humidity is not more than 80%. Harmful gases, flammable, explosive products and corrosive chemicals are not allowed in the warehouse. And there should not be strong mechanical vibration, impact and strong magnetic field. The packing box should be at least 20cm away from the ground and at least 50cm away from the wall, heat source, window or air inlet. The storage period under the specified conditions is generally 2 years. After 2 years, the inspection should be re-inspected.
Product Details

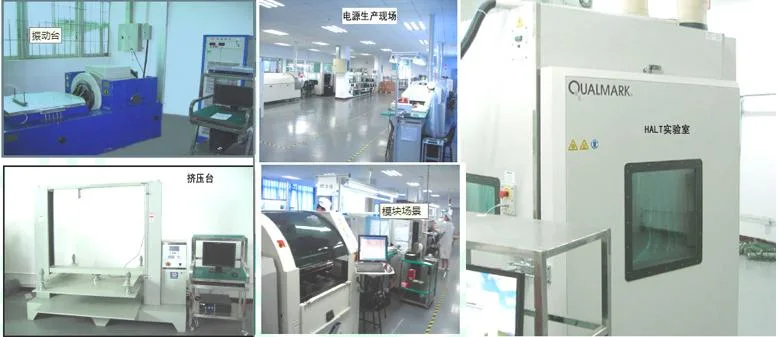

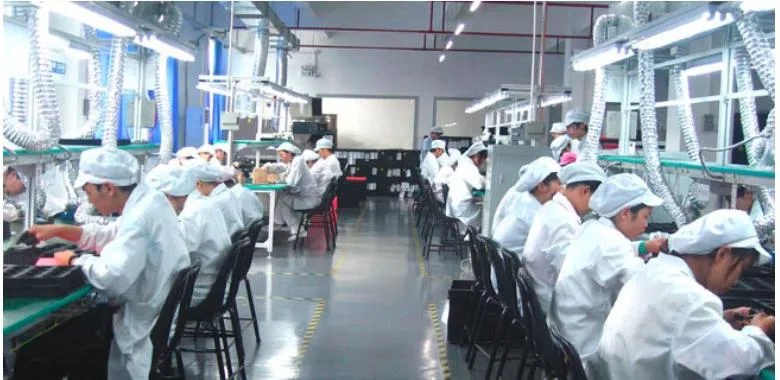

Factory profile
