240W 10A Power Adapter 24V Switching Power Supply for Audio Device

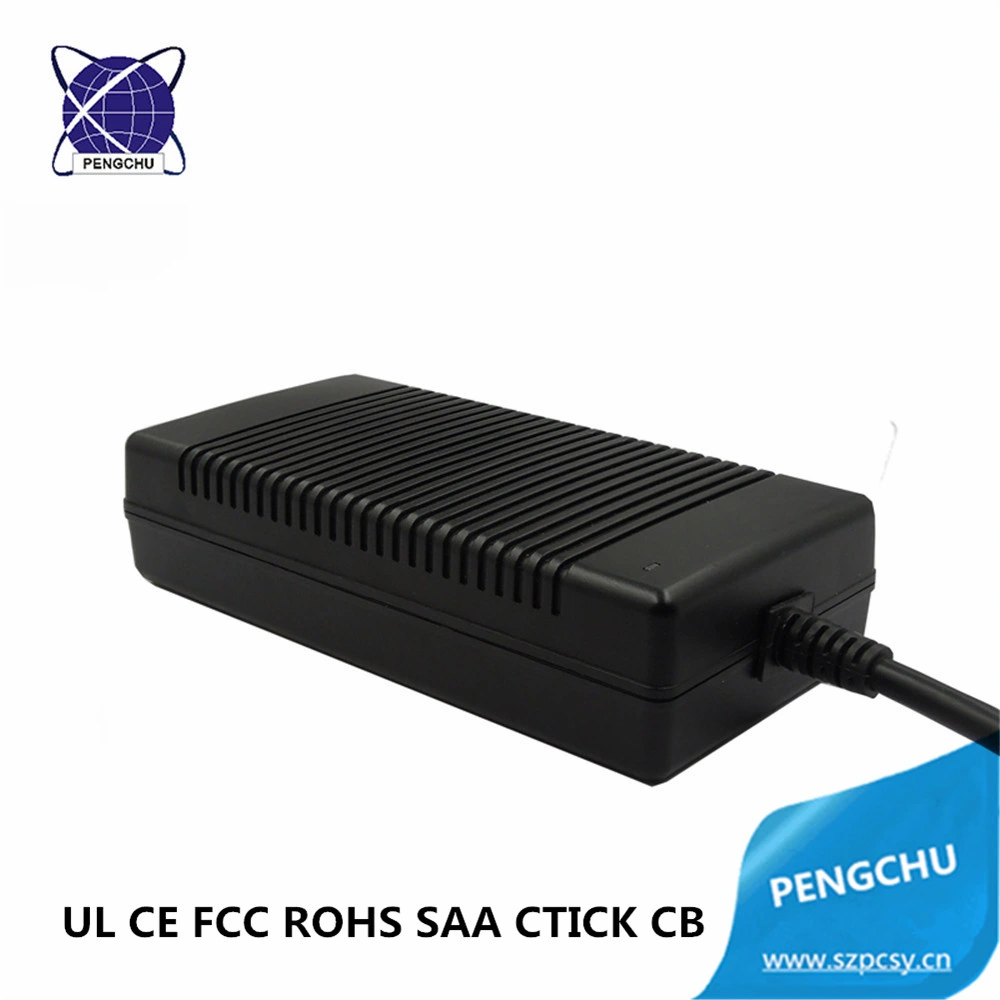

Product show:
Features:
(1)High efficiency, High reliability, Long life time
(2)Efficiency: 88% min
(3)PFC:>0.99
(4)Approved CE RHOS FCC certification
(5)Warranty: 2 years
(6)Protection: Over current protection, Over voltage protection, Short circuit protection; Over temperature protection.
(7) Real power, high reliability, long life
IEC320-C14, IEC320-C6 AC inlet optional
OEM/ODM welcome (special voltage & dc connector & logo & package).
| AC Input | 100~240V AC 50/60Hz Max:90~264V AC 47/63Hz |
| DC Voltage | 24V |
| Rate Current | 10A |
| Rate Power | 240W |
| Material | 100% PC |
| Certification | Approved CE ROHS FCC C-TICK certification |
| Voltage Tolerance | ±5% |
| Line Regulation | ±1% |
| Load Regulation | ±5% |
| Efficiency | >88% |
| Short Circuit Protection | Shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed. |
| Over Current Protection | 130%~150% |
| Over Voltage Protection | 115%~135% |
| Operating Temperature | -10ºC~50ºC(±10ºC) |
| Relative Humidity | 20%~90% RH |
| Storage Temperature | -40ºC~80ºC(±10ºC) |
| DC Connector | 6 pin or Customized available |
| DC Cable | 0.6m, 0.8m, 1.2M (Customized available) |
| AC Cable | USA/UK/EU/AU/India Plugs(Customized available) |
