60W AC DC Adapter 12V 5A AC DC Switching Power Supply

Product Description60W AC DC Adaptor 12V 5A AC DC Switch Mode Power SupplyFeatures:Universal AC input/Full range(up to 264Vac)Protection: Short circuit/Overload/Over temperatureHigh efficiency, long life and hign reliaility100% full load burn-in testTwo years warrantyClass 1 designProduct Description60W AC DC Adaptor 12V 5A AC D

Featured Products

Product Description

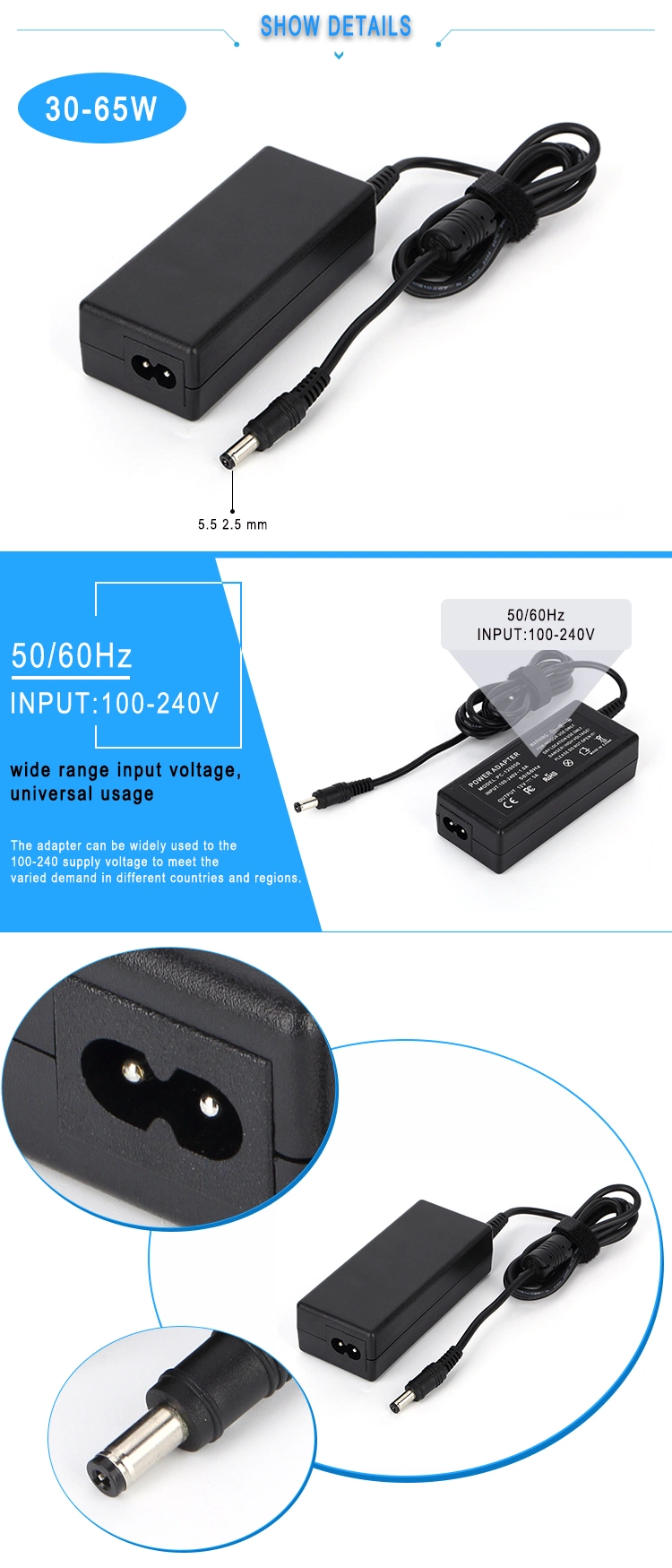

60W AC DC Adaptor 12V 5A AC DC Switch Mode Power Supply

Features:

  • Universal AC input/Full range(up to 264Vac)
  • Protection: Short circuit/Overload/Over temperature
  • High efficiency, long life and hign reliaility
  • 100% full load burn-in test
  • Two years warranty
  • Class 1 design
Product Description
60W AC DC Adaptor 12V 5A AC DC Switch Mode Power Supply
Part NO.  PC-120050
DC Voltage  12V
Rate Current  5A
Current range  0~5A
Rate power  60W
Voltage tolerance  ±5%
Line Regulation  ±1%
Load Regulation  ±5%
AC Input  100~240Vac 50/60Hz max: 90~264Vac 47/63Hz
Efficiency  >85%
Short Circuit Protection

 Shall be protected when any output operation in circuit short condition,and shall be  auto restart when the fault condition is  removed.

Over Current Protection 130%-150%
Over Voltage Protection 115%-135%
Operating Temperature -10-50ºC (±10ºC)
Relative Humidity 20%-90% RH
Storage Temperature -40-80ºC (±10ºC)
Dielectric Withstand Voltage(HI-POT) 100% of line products of this adapter shall be applied 3000V AC or 4242V DC for a minimum of 1 minute between AC input terminals and output terminals
Cut-off current is specified as 10mA
Insulation-resistance100M ohms
DC Connector 5.5*2.5/5.5*2.1mm/4pin or 6pin connector (Customized Available)
DC Cable 1.2m/1.5m/1.8m(Customized Available)
AC Cable 1.2m ac cable with USA/UK/EU/AU/India plugs


60W AC DC Adaptor 12V 5A AC DC Switch Mode Power Supply

120W LED Power Supply 12V 10A Switching Power Adapter
120W LED Power Supply 12V 10A Switching Power Adapter
120W LED Power Supply 12V 10A Switching Power Adapter
120W LED Power Supply 12V 10A Switching Power Adapter

Why Choose US:

  • Professional team for after-sale service 7*24
  • 11 years Alibaba Gold supplier
  • Experienced R & D team and profesional sales team
  • OEM & ODM service, we will evaluate, design and produce your customized products
  • Offer confidentiality agreement to protect your profit, with us your business will be in safe your money in safe.

Trade Term:

  • Payment term: PayPal, Western Union, T/T
  • Leading time:7-9  working days
  • Sample: 3-5 working days after payment confirmed
  • Freight cost: Customers's shipping agent or our forwarder

FAQ:

     Q1:  WAHT'S YOUR MOQ:

    A1:  Usually MOQ is 100pcs, we also can accept trail order to support new customers, 1000pcs for customized units

    Q2:  WHAT'S YOUR WARRANTY?

    A2:  Two years warranty.

    Q3:  HOW ABOUT THE LEADING TIME?

    A3:  For samples, leading time is 3-5 working days.

           For mass cargo, leading time will be 7-9 working days
