312W 24V 13A AC DC Adapter Switch Mode Power Supply for LCD Monitor

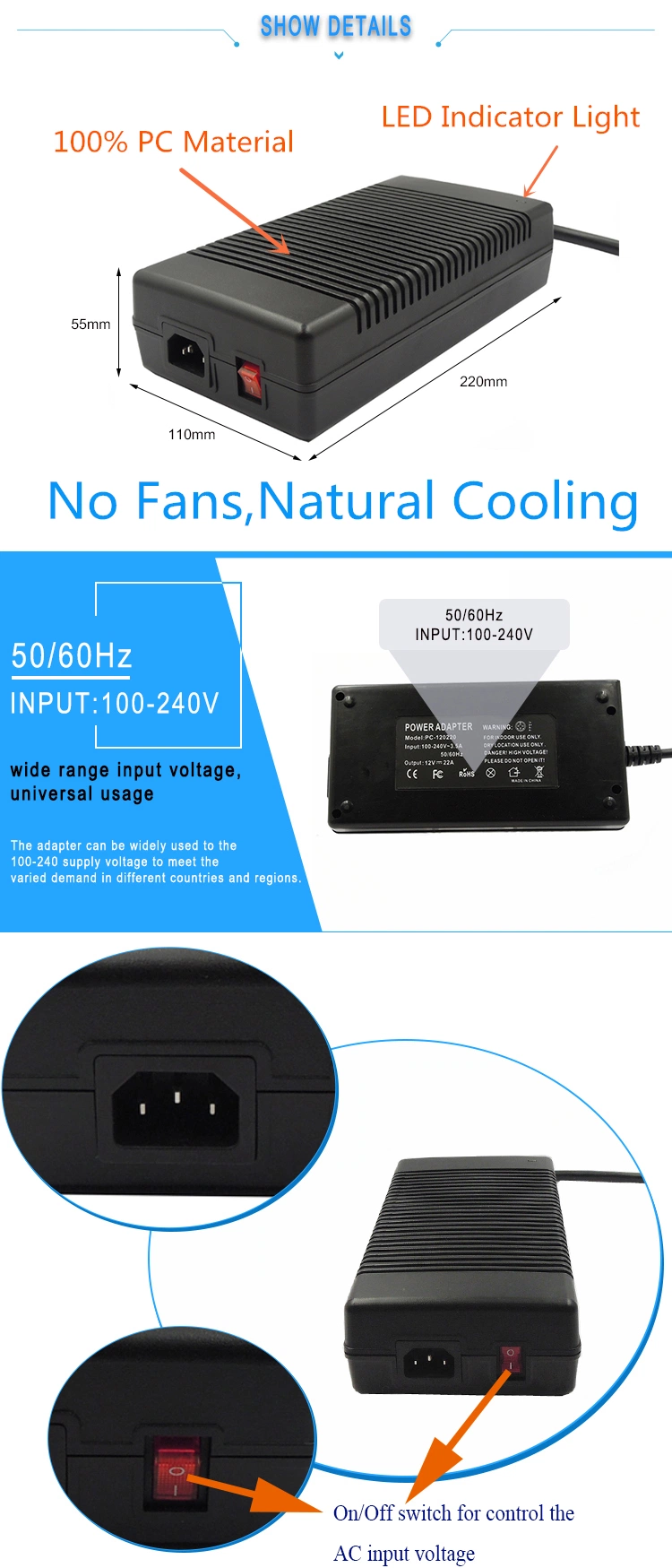

Product show:
![312W 24V 13A AC DC Adapter Switch Mode Power Supply for LCD Monitor](https://img3.grofrom.com/electrwhgsuply/ed6882a1b31ef49bbd69b2a8f1c97c25.webp)
![312W 24V 13A AC DC Adapter Switch Mode Power Supply for LCD Monitor](https://img3.grofrom.com/electrwhgsuply/b6cead460d2ce33635198f5af9a681a5.webp)
![312W 24V 13A AC DC Adapter Switch Mode Power Supply for LCD Monitor](https://img3.grofrom.com/electrwhgsuply/cfae153ff25c7ed34a1a33235399ecaf.webp)
![312W 24V 13A AC DC Adapter Switch Mode Power Supply for LCD Monitor](https://img3.grofrom.com/electrwhgsuply/dc57358cc05b4c2b3f20a4e568f087de.webp)
![312W 24V 13A AC DC Adapter Switch Mode Power Supply for LCD Monitor](https://img3.grofrom.com/electrwhgsuply/ff4941ffa83618e9ca9b9784e0737b9f.webp)
Features:
(1)High efficiency, High reliability, Long life time
(2)Efficiency: 88% min
(3)PFC:>0.99
(4)Approved CE RHOS FCC certification
(5)Warranty:2 years
(6)Protection: Over current protection, Over voltage protection, Short circuit protection; Over temperature protection.
(7) Real power, high reliablity, long life
IEC320-C14, IEC320-C6 AC inlet optional
OEM/ODM welcome (special voltage & dc connector & logo & package).
AC Input | 100~240V AC 50/60Hz Max:90~264V AC 47/63Hz |
DC Voltage | 24V |
Rate Current | 13A |
Rate Power | 312W |
Material | 100% PC |
Certification | Approved CE RoHS FCC C-TICK certification |
Voltage Tolerance | ±5% |
Line Regulation | ±1% |
Load Regulation | ±5% |
Efficiency | >88% |
Short Circuit Protection | Shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed. |
Over Current Protection | 130%~150% |
Over Voltage Protection | 115%~135% |
Operating Temperature | -10ºC~50ºC(±10ºC) |
Relative Humidity | 20%~90% RH |
Storage Temperature | -40ºC~80ºC(±10ºC) |
DC Connector | 6 pin or Customized available |
DC Cable | 0.6m, 0.8m, 1.2M (Customized available) |
AC Cable | USA/UK/EU/AU/India Plugs(Customized available) |
